Price range: 812,22 € through 966,93 €

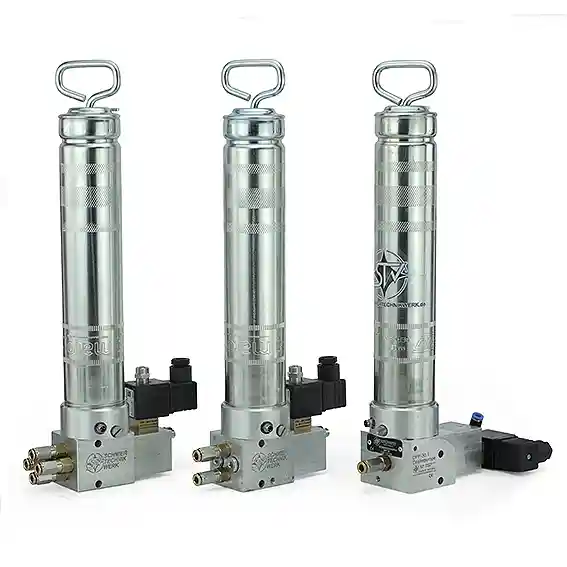

DPF30/70 are central lubrication pumps for standard grease cartridges. They are designed to use the most common grease cartridges—such as those used in hand-lever grease guns—for automatic grease lubrication.
The high-performance electro-pneumatic piston system is designed for very high delivery pressures (150 to 200 bar). This allows not only single-point lubrication but also trouble-free operation as a central lubrication system with grease distributors, as well as the supply of grease to distant lubrication points.
The Cartridges
The DPF30/70 lubrication pump is available for two types of cartridges:
| Einsatzbereich: | Fettschmierung aus Fettkartuschen |
| Schmiermedium: | Fett NLGI- Klasse 000 bis 2 |
| Anzahl der Ausgänge: | 1, 2 oder 4 |
| Einsatztemperatur: | 10….50°C |
| Ansteuerzeit (ON- Time): | min. 0,25s |
| Ansteuerzeit (OFF- Time): | min. 1s |
| Förderdruck DPF 30.1: | max. 200 bar |
| Förderdruck DPF 70.2: | max. 150 bar |
| Förderdruck DPF 70.4: | max. 75 bar |
| Füllstandssensor: | vorhanden |
| Kartuschenformen: | 400g DIN- Kartuschen (DIN 1284) 400g LubeShuttle-Kartuschen |
| Mediumanschluss: | Einsteckverschraubung Ø 6mm |
| Druckluftversorgung: | 2….6 bar |
| Spannung: | 24 VDC, 1,27 A, 100 % ED oder 230 VAC, 0,15 A 100 % ED |

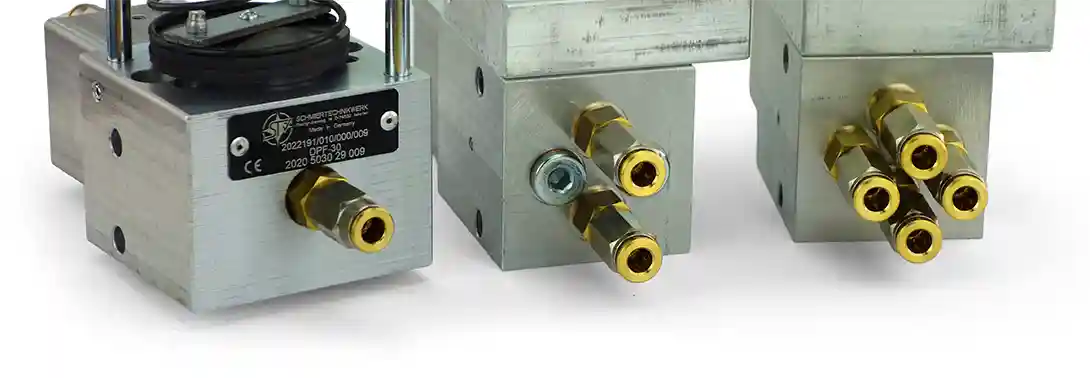

| Förderleistung | Anzahl der Auslässe | Kartuschen-Typ | STEP – Datei |
|---|---|---|---|
| 30 mm³ / Hub | 1 | DIN Kartusche |  |
| 30 mm³ / Hub | 1 | LubeShuttle® Kartusche |  |
| 70 mm³ / Hub | 2 | DIN Kartusche |  |
| 70 mm³ / Hub | 2 | LubeShuttle® Kartusche |  |
| 70 mm³ / Hub | 4 | DIN Kartusche |  |
| 70 mm³ / Hub | 4 | LubeShuttle® Kartusche |  |
