34,96 €

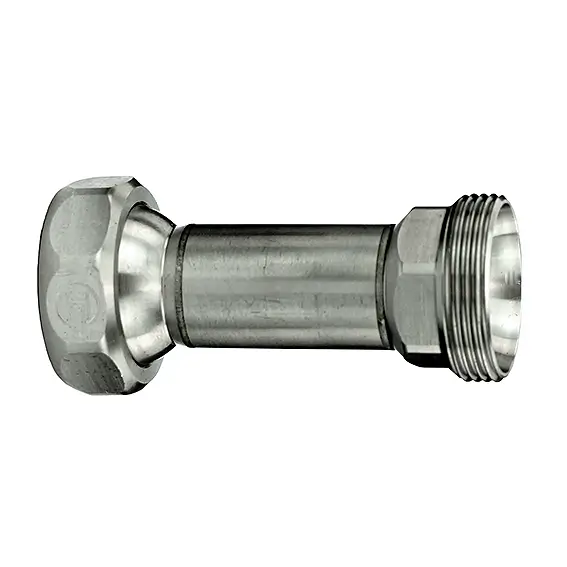

Basic element or joint piece “medium” for
VAK LH 1/2″ (size 2)
Stainless steel coolant hose
Installation length: 53.5
Width across flats: SW27 mm
Bore diameter: Ø11 mm
Thread: M24x1
Material: 1.4305
Operating temperature: -100°C to +300°C
Pressure resistance: 100 bar
Item number: 013 03 12 050
Delivery time: ex stock
Subject to prior sale
34,96 €
Basic element or joint piece “medium” for
VAK LH 1/2″ (size 2)
Stainless steel coolant hose
Installation length: 53.5
Width across flats: SW27 mm
Bore diameter: Ø11 mm
Thread: M24x1
Material: 1.4305
Operating temperature: -100°C to +300°C
Pressure resistance: 100 bar
Item number: 013 03 12 050
Delivery time: ex stock
Subject to prior sale
The STW VAK-LH stainless steel articulated hoses for coolant are the maximum robust solution for your processing machine.
They are made entirely of stainless steel and are permanently welded together with maximum temperature resistance for assembled components. This means that STW metal coolant hoses can be used at -100° to +300°C and at pressures of up to 100 bar.
“Locked Hard” stands for metal coolant hoses that can be easily adjusted, but are absolutely immovable when the union nuts are firmly tightened. No vibrations, no unbroken chip clusters from your lathe will obstruct the cooling jet of your cooling lubricant. As they are made of stainless steel (1.4305), the STW metal joint hoses will never rust and will last for a long time.
An investment that pays off.
| Einsatzbereich: | Kühlmittel, Emulsion, Luft etc. |
| Werkstoff: | Edelstehl 1.4305 |
| Einstztemperatur: | -100°C bis +300°C |
| Druckbeständigkeit: | 100 bar |
