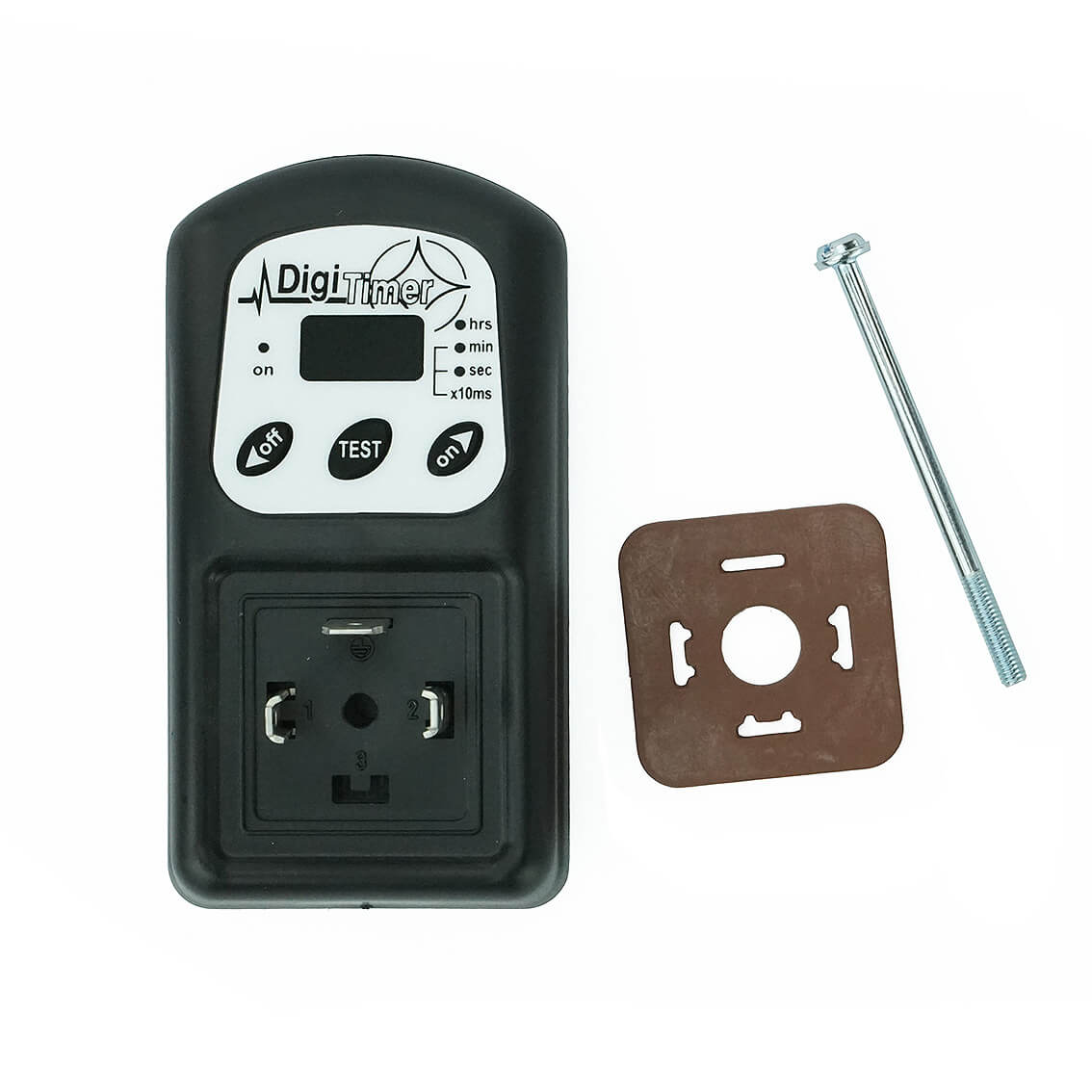

The universal timer for STW solenoid pumps, drip oilers or any solenoid valve. The STW DigiTimer can be set as a pulse generator (alternating ON/OFF pulse generator) as a switch-on delay or switch-off delay.
The STW DigiTimer is the ingeniously simple solution for controlling small appliances digitally, i.e. with millisecond precision.
We use it in our SputtMiK minimum quantity dosing systems or dosing oilers to precisely clock the exact delivery volume of the piston pumps.

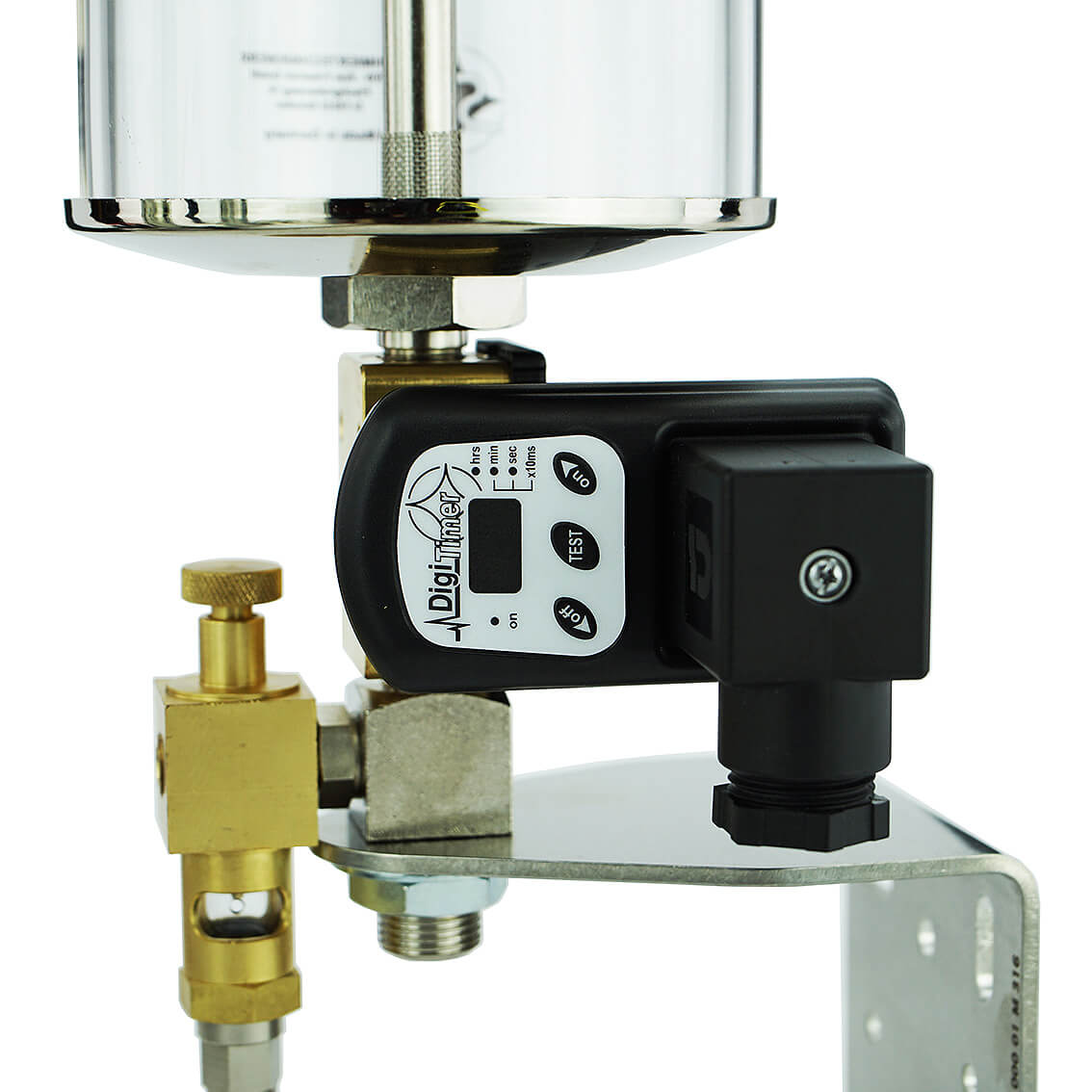

But the STW DigiTimer also controls the working time of our drip oilers, the timing of our grease pumps or the solenoid valve of your application with high precision.

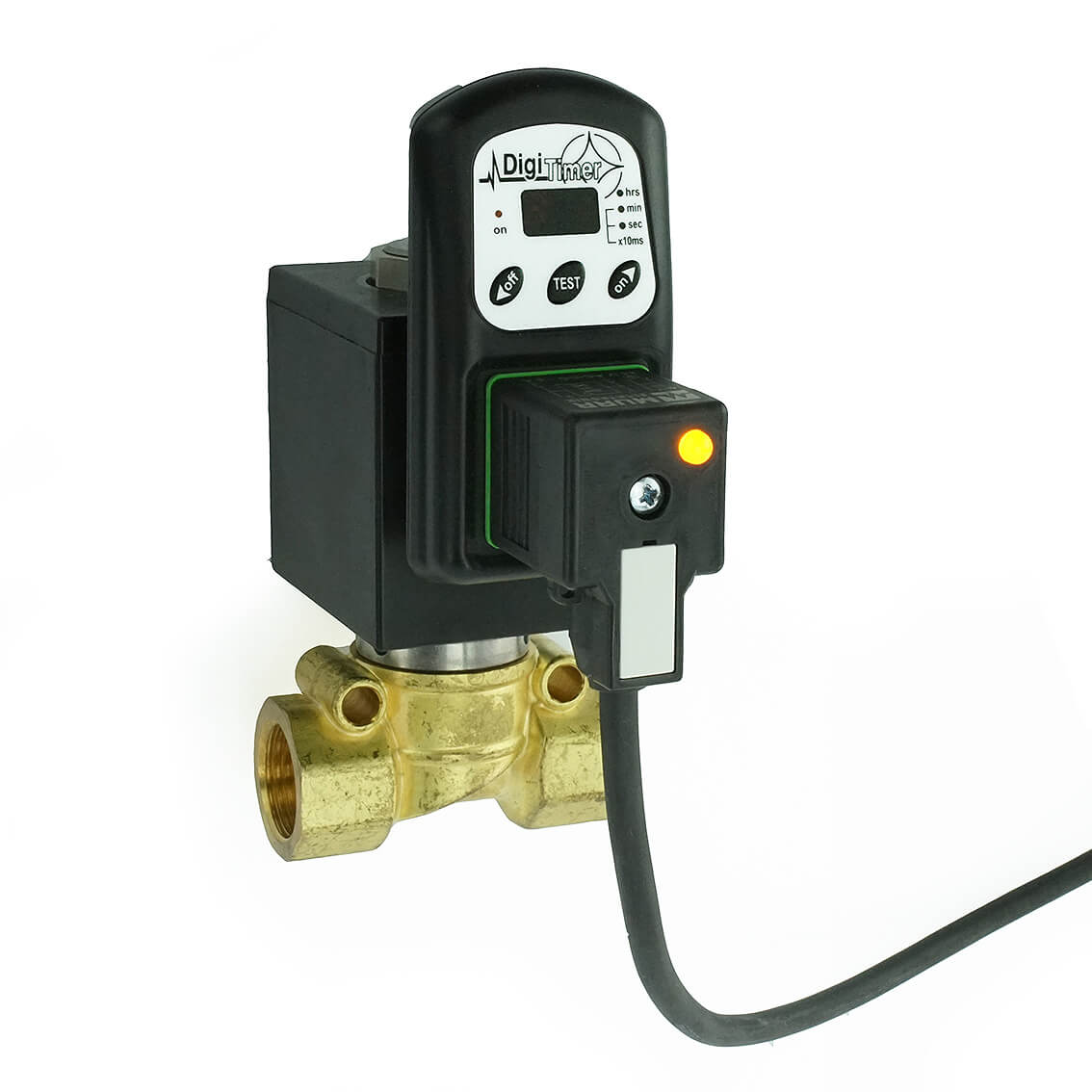

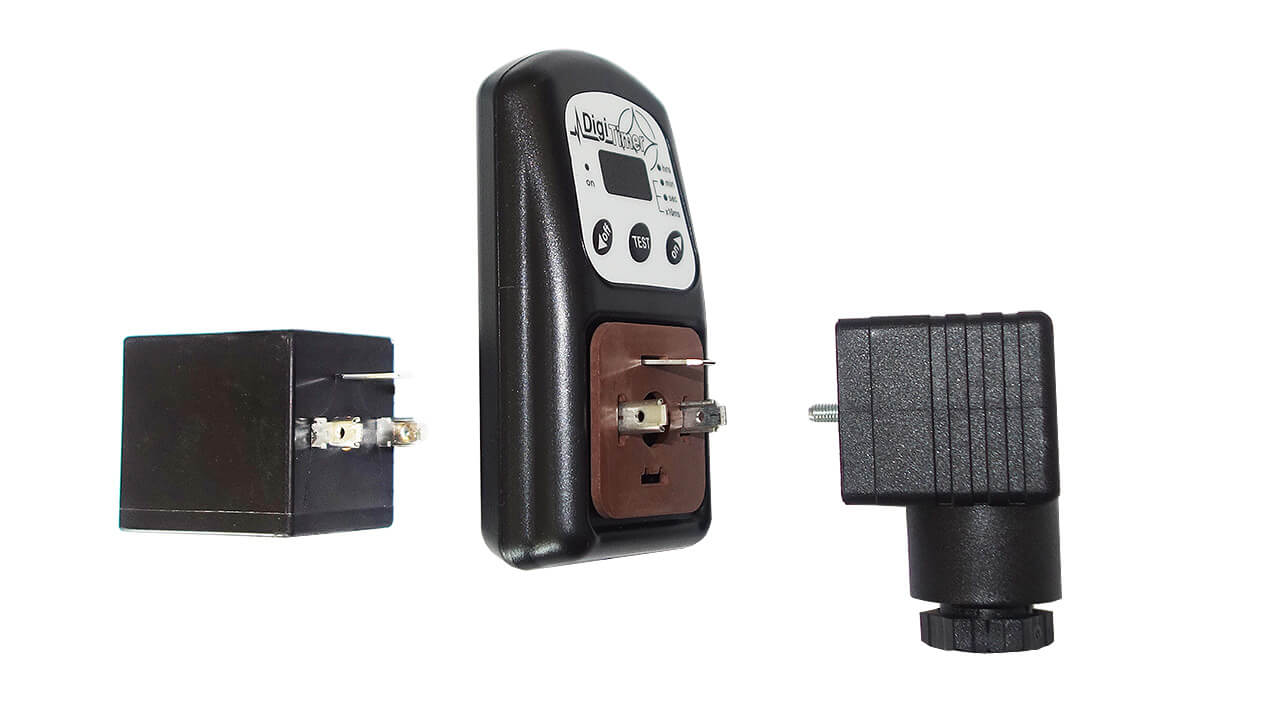

For mounting between the valve connector and the solenoid coil of the valve.
Suitable for all valves with Hirschmann® plug according to DIN 43650 Form A
Timer for each valve with plug according to DIN 43650-A (standard valve plug)
Asymmetrical clock (separately adjustable ON and OFF time) from 10ms to 99 hours
Programmable switch-on and switch-off delay
Dustproof and waterproof according to IP65 with screwed plug
| Einsatzbereich: | Zeitgesteuertes schalten von z. B. Magnetventilen |
| Funktionen: | – Ein/Aus Schalten (Zyklen, Takte, Pulse…) – Einschalt- / Ausschaltverzögerung |
| Verfügbare Spannungen: | 10..48VAC/DC, 110-240VAC/DC |
| Schaltleistung: | 1A (bis 48V), 20W (bei 110-240V) |
| Einsatztemperatur: | 10°C .. 50°C |
| Einstellbereich.: | 0,01 Sekunden bis 99 Stunden (ON und OFF) |
| Steckeranschluss: | DIN 43650-A (ISO 4400) |
| Schutzklasse: | IP65 (Bei montiertem Stecker) |
