Price range: 84,85 € through 94,85 €

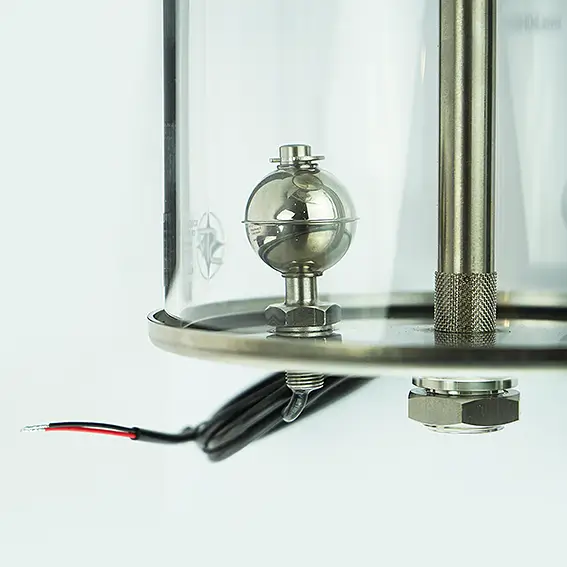

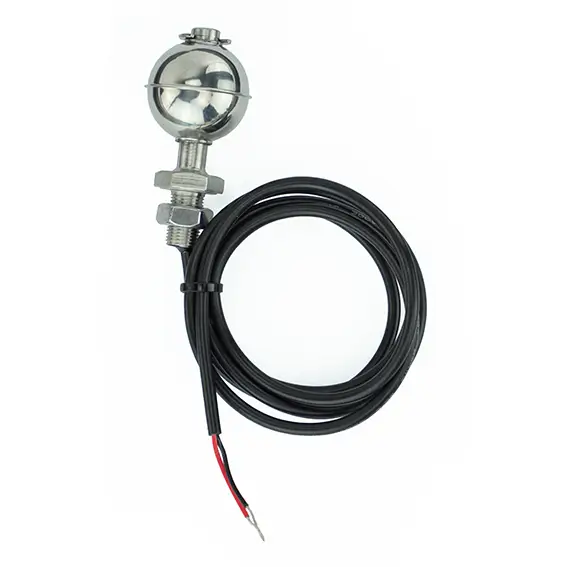

High-quality stainless steel float switch for detecting the end of filling. You can order the float switch together with an oil tank (1L, 2L or 3L… the smaller tanks do not have enough space). Determine where the float switch is to be installed and you will receive the tank with the float switch installed.
The switch is sealed with aluminum seals and has a 1m open cable end. It is a reed contact that can be operated from 12 to 230V… However, loads should not be “switched” via the switch… (see technical data).
If you order the float switch individually, i.e. unassembled, it is shipped as normally open (NO) as standard. However, by turning the float ball, the NO contact can be quickly converted into a NC contact.
| Einsatzbereich: | Füllstandschalter für Öle, Wasser und ander Medien ähnlicher Dichte |
| Werkstoff Stahlteile | Edelstahl 1.4401 |
| Kabel: | PVC-Kabel, 1 m Länge |
| Schaltleistung: | Max. 50 W |
| Schaltstrom: | 0,5 A |
| Schaltspannung.: | max. 300 V |
| Einsatztemperatur: | -20° C bis +85°C |
| Schwimmerschalter | 9980 01 SMS | STEP |
