Price range: 56,50 € through 146,40 €
The standard solution for automated chain lubrication as a durable alternative to e.g. lubricating brushes or grease brushes.
Developed for use with chain oilers or drip oilers.
Lubrication pinion for the automatic lubrication of duplex roller chains.
The version with a straight axle is particularly suitable for mounting on metal sheets, housings or mounting brackets. Another mounting option for this lubrication pinion design is the optionally available spring bracket.
The long, straight threaded axle allows the chain lubrication pinion to be adjusted in axial position over a wide range.
SET consisting of:
| Einsatzbereich: | Standard-Rollenketten in doppelter Ausführung (duplex) nach DIN ISO 606 (ex DIN 8187) oder DIN 8188 |
| Schmiermedium: | Ketten-Schmieröl |
| Einsatztemperatur: | -30°C bis +90°C (bis 140°C auf Anfrage) |
| max. Geschwindikeit: | 5 m/s |
| Materialien: | |
| Metallteile: | Stahl (vernickelt) |
| Applikator: | PU |
| Ritzel : | PA6-GF15 |
| Ketten-Typ | Ø D | Ø D1 | Ø D2 | B | B1 | G1 | G2 | L | L2 | L3 | L4 | L5 | SW | Artikelnummer | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

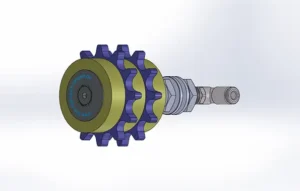

| 1/2“ | (08 B-2) | 53 | 49.1 | 39 | 40 | 5 | M10 | M6 | 81.2 | 41 | 30 | 53 | 15 | 15 | 012 06 08B2 AZ |

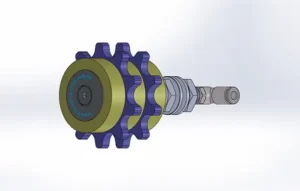

| 5/8“ | (10 B-2) | 55 | 51.4 | 39 | 40 | 5 | M10 | M6 | 81.2 | 41 | 30 | 53 | 15 | 15 | 012 06 10B2 AZ |

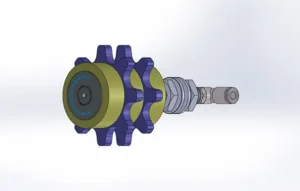

| 3/4“ | (12 B-2) | 55 | 49.8 | 36 | 45 | 5 | M10 | M6 | 86.2 | 53 | 30 | 55.5 | 15 | 15 | 012 06 12B2 AZ |

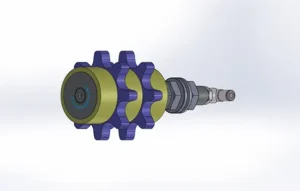

| 1“ | (16 B-2) | 75 | 66.4 | 48 | 80 | 10 | M16 | M10x1 | 146.4 | 65.7 | 49.1 | 90.7 | 30 | 24 | 012 06 16B2 AZ |

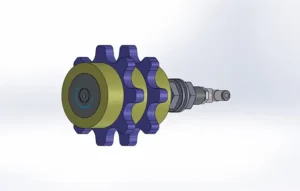

| 1 /1/4“ | (20 B-2) | 90 | 83 | 59 | 80 | 10 | M16 | M10x1 | 146.4 | 65.7 | 49.1 | 90.7 | 30 | 24 | 012 06 20B2 AZ |

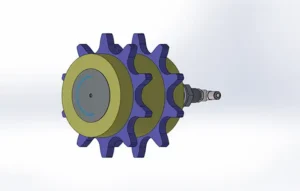

| 1 1/2“ | (24 B-2) | 138 | 123.3 | 93 | 100 | 10 | M16 | M10x1 | 166.4 | 65.7 | 49.1 | 90.7 | 50 | 24 | 012 06 24B2 AZ |
| 1 3/4“ | (28 B-2) | 140 | 116.2 | 81 | 130 | 10 | M16 | M10x1 | 196.4 | 65.7 | 49.1 | 95.7 | 70 | 24 | 012 06 28B2 AZ |

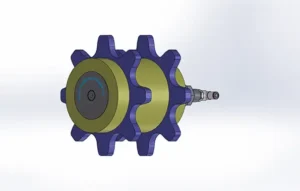

| 2“ | (32 B-2) | 150 | 132.8 | 93 | 130 | 10 | M16 | M10x1 | 196.4 | 65.7 | 49.1 | 95.7 | 70 | 24 | 012 06 32B2 AZ |
