15,98 €

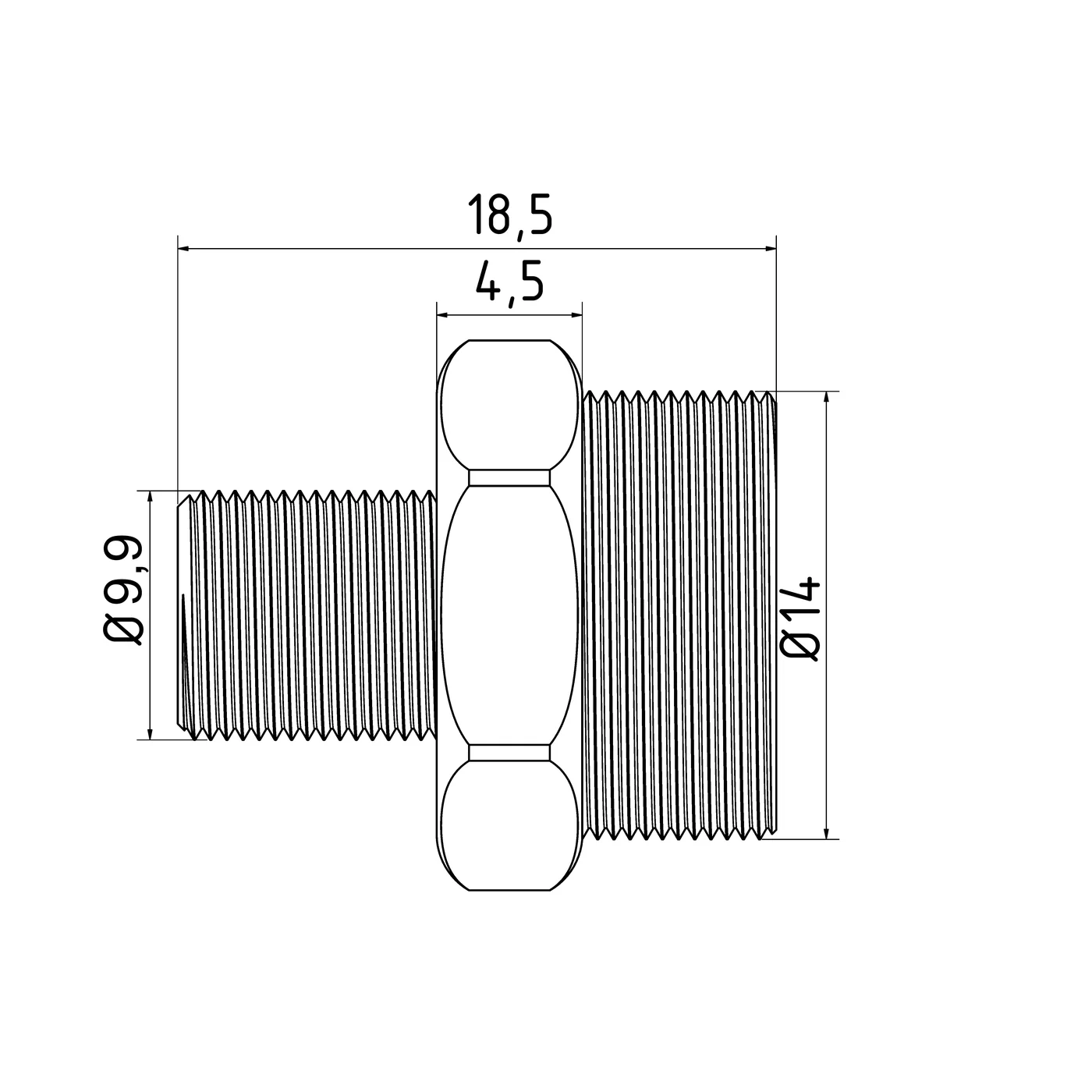

Type: ASM – 10.1
LH = Locked Hard
Wrench size: SW15 mm
Bore diameter: Ø5.8 mm
Thread 1: M14x1
Thread 2: M10 x 1
Material: 1.4305
Operating temperature: -100°C to +300°C
Pressure resistance: 100 bar
High-quality adapter with M14x1 to M10x1 threads from the VAK.1/4″ stainless steel coolant hose system series by STW
, suitable for metal flexible hoses.
This adapter connects your existing coolant fitting with an M10x1 female thread to the STW VAK.1/4″ stainless steel coolant hose system.
This means you can use all other components from the Edelsthal VAK.1/4″ coolant hose system to create your own custom cooling and lubrication system.
| Product Group | Coolant Hose |
|---|---|
| Unit | pcs |
| Customs Tariff Number | 84669360 |
–
No CAD data is available for this variant.
–
