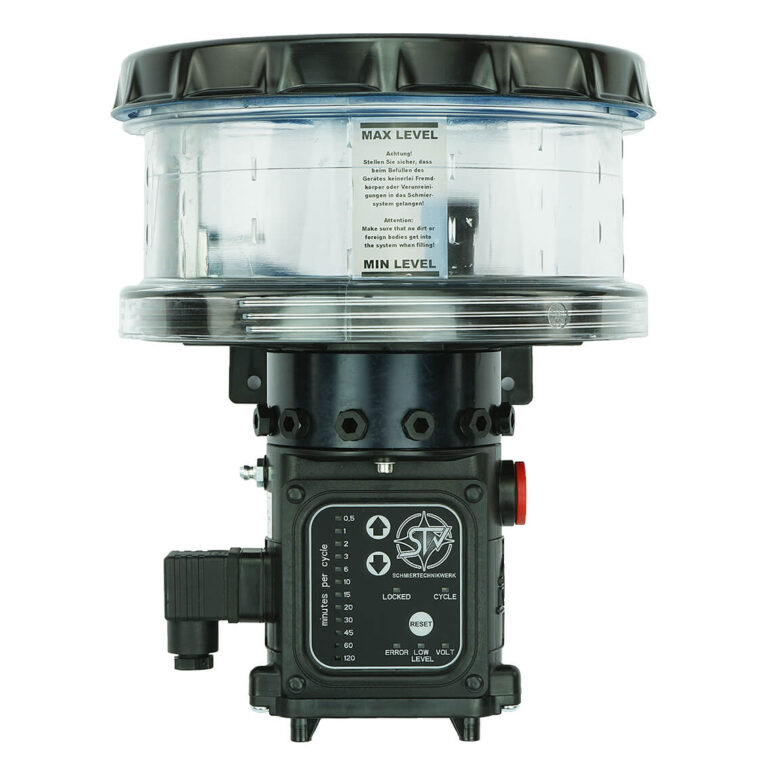

Cost-effective centralized lubrication for medium requirements.
This primarily refers to the operating pressure: At 80 bar, this is not excessively high, but it is far sufficient for the majority of all lubrication applications. This is where the X1 centralized lubrication system comes into its own:

• inexpensive
• Up to 35 lubrication points
• Large selection of different pump elements
• also suitable for vehicles (available in 12V)

“Lubricator X1 defines the standard”

A grease reservoir that can be expanded modularly up to 8 kg, voltage and fill level monitoring and the robust design make the X1 grease lubricator a top seller for industry in the OEM and retrofit segment.

“The right amount of lubricant… not an issue!”

The large variation range with regard to the quantity of grease dispensed per time and lubrication point is also unsurpassed!
The combination of different sized pump elements that can be used in the X1 centralized lubrication unit with the large adjustment range of the dispensing intervals results in possible applications that are classically in the area of the smallest lubricators or in the field of application of the largest centralized lubrication systems.

Specifically:

• The smallest dispensing quantity per outlet is approx. 90 ml / year with an operating time of 365 days, around the clock.
• The largest quantity of lubricant dispensed per lubrication point is approx. 190 ml per day!
