Price range: 152,87 € through 300,76 €

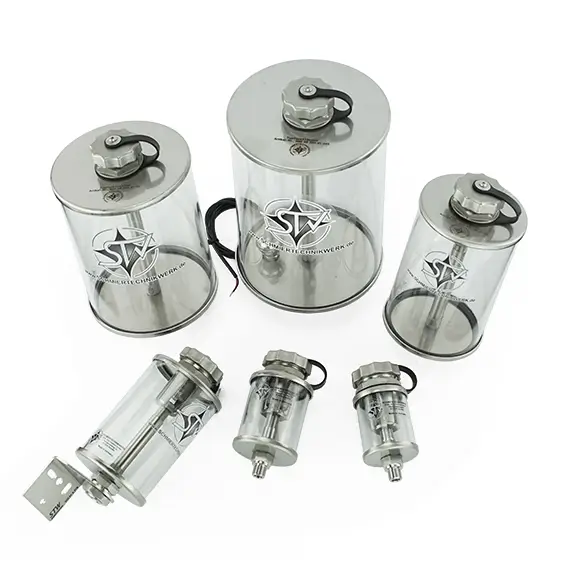

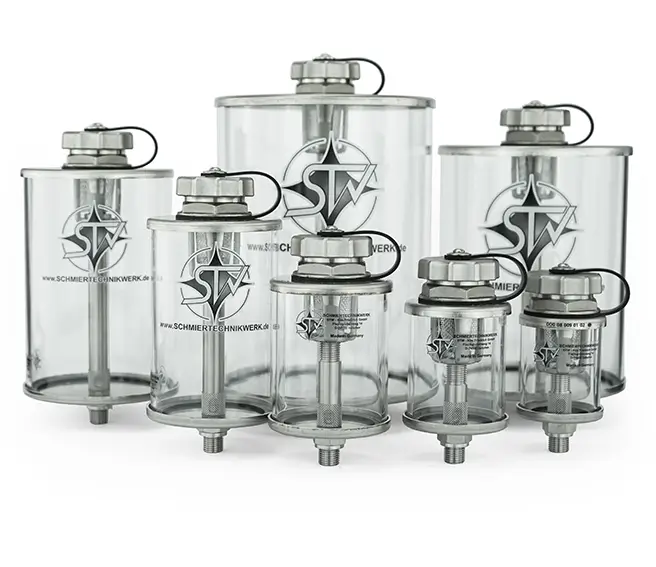

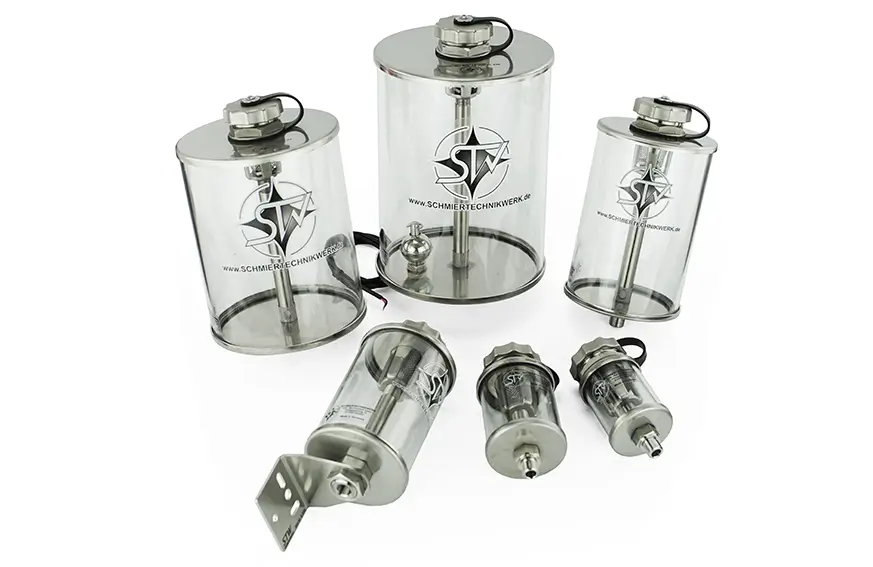

TopTank novum… the standard oil tank for all lubrication devices.
The TopTank oil reservoir is an integral part of every oil lubrication device. With its completely stainless design as standard, it is suitable for all areas of application… whether outdoors or in a normal industrial environment.
As the name suggests, an STW TopTank is always installed at the highest point of a lubrication system and therefore supplies all the components below it with the required lubricant. These can be micro-metering pumps for minimum quantity lubrication systems, coke metering pumps for chain lubrication systems such as the STW-DEK chain lubricator or simply oil drippers that reduce the lubricating oil to the lubrication points to the required flow rate.
A TopTank oil reservoir is vented via the lid (weatherproof labyrinth vent channel) to enable the reservoir to be emptied.
A wide range of accessories such as ball valves, additional connections, float switches, mounting brackets, oil drippers etc. make the application truly UNIVERSAL.
| Einsatzbereich: | Vorratsbehälter für Schmiergeräte |
| Behältervolumen: | 90ml bis 3 Liter |
| Gewindeanschluss: | G1/4″ oder G1/2″ |
| Einsatztemperatur: | -20°C bis +60°C bei PMMA Glas -20°C bis +180°C bei Borosilikat-Glas |
| Variante | Volumen | Gewinde G1/4″ | Gewinde G1/2″ | Zeichnung | |
|---|---|---|---|---|---|
 | TopTank novum.009 | 90 ml | Art. Plexiglas:000 08 009 11 02Art. Borosilikat-Glas:000 08 009 12 02 STEP-Modell | Art. Plexiglas:000 08 009 11 04Art. Borosilikat-Glas:000 08 009 12 04 STEP-Modell | PDF-Zeichnung |
 | TopTank novum.015 | 150 ml | Art. Plexiglas:000 08 015 11 02Art. Borosilikat-Glas:000 08 015 12 02 STEP-Modell | Art. Plexiglas:000 08 015 11 04Art. Borosilikat-Glas:000 08 015 12 04 STEP-Modell | PDF-Zeichnung |
 | TopTank novum.025 | 250 ml | Art. Plexiglas:000 08 025 11 02Art. Borosilikat-Glas:000 08 025 12 02 STEP-Modell | Art. Plexiglas:000 08 025 11 04Art. Borosilikat-Glas:000 08 025 12 04 STEP-Modell | PDF-Zeichnung |
 | TopTank novum.050 | 500 ml | Art. Plexiglas:000 08 050 11 02Art. Borosilikat-Glas:000 08 050 12 02 STEP-Modell | Art. Plexiglas:000 08 050 11 04Art. Borosilikat-Glas:000 08 050 12 04 STEP-Modell | PDF-Zeichnung |
 | TopTank novum.100 | 1 Liter | Art. Plexiglas:000 08 100 11 02Art. Borosilikat-Glas:000 08 100 12 02 STEP-Modell | Art. Plexiglas:000 08 100 11 04Art. Borosilikat-Glas:000 08 100 12 04 STEP-Modell | PDF-Zeichnung |
 | TopTank novum.200 | 2 Liter | Art. Plexiglas:000 08 200 11 02Art. Borosilikat-Glas:000 08 200 12 02 STEP-Modell | Art. Plexiglas:000 08 200 11 04Art. Borosilikat-Glas:000 08 200 12 04 STEP-Modell | PDF-Zeichnung |
 | TopTank novum.300 | 3 Liter | Art. Plexiglas:000 08 300 11 02Art. Borosilikat-Glas:000 08 300 12 02 STEP-Modell | Art. Plexiglas:000 08 300 11 04Art. Borosilikat-Glas:000 08 300 12 04 STEP-Modell | PDF-Zeichnung |
