VAK Size 3 AS-3/8NPT
23,25 €

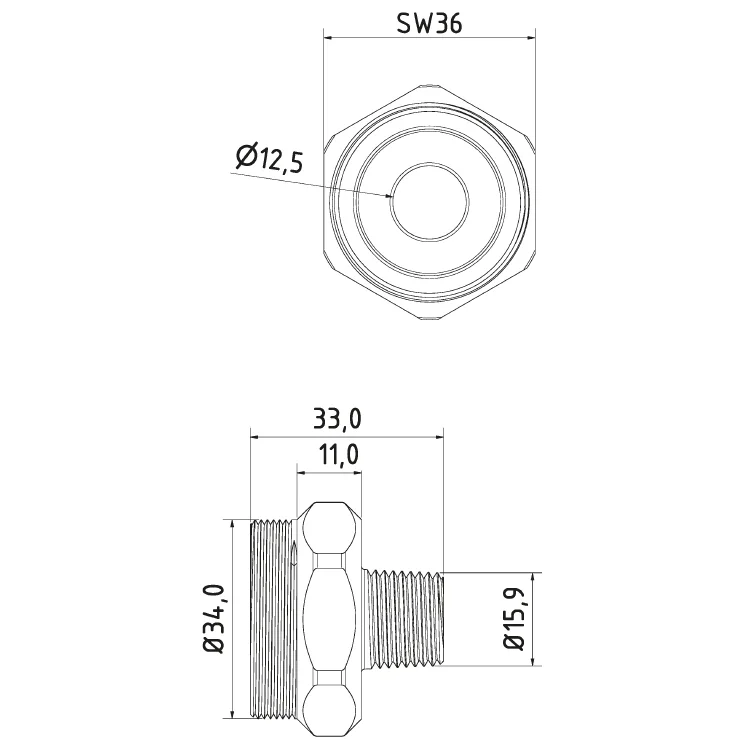

VAK adapter, Size 3
Type AS – 3/8NPT
Bore diameter: Ø12.5 mm
Thread 1: M34x1.25
Thread 2: 3/8″NPT
Operating temperature: -100°C to +300°C
Pressure resistance: 100 bar
Material: 1.4305
Description
The STW VAK-LH stainless steel articulated hoses for coolant are the maximum robust solution for your processing machine.
They are made entirely of stainless steel and are permanently welded together with maximum temperature resistance for assembled components. This means that STW metal coolant hoses can be used at -100° to +300°C and at pressures of up to 100 bar.
“Locked Hard” refers to metal coolant hoses that are incredibly easy to adjust, yet remain absolutely immovable once the cap nuts are tightened. No vibration and no clumps of unbroken chips from your lathe will interfere with the flow of your coolant. Since they’re made of stainless steel (1.4305), STW metal swivel hoses will never rust and will last you a lifetime.
An investment that pays off.
Machining
Applications:
Coolant, emulsion, air, etc.
Material:
Stainless steel 1.4305
Operating temperature:
-100°C to +300°C
Pressure resistance:
100 bar
Technical data
| Application | Tool cooling |
|---|---|
| Suitable media | Cutting oils, coolant emulsion, water, air |
| VAK Size | 3 (large) |
| Nominal diameter | 19 mm |
| Operating temperature | -100°C to +300°C |
| Pressure resistance | 100 bar |
| Material | 1.4305 |
| Product Group | Coolant Hose |
| Unit | pcs |
Dimensions / CAD Models
–
No CAD data is available for this variant.
